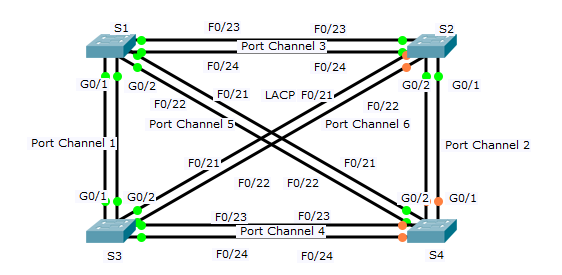

(above image is a preview of the packet tracer)

This post is split into two parts.
1. The download link of the completed packet tracer, and sometimes completed, or uncompleted PDFs or other files.

2. Tutorial. A text guide on how the packet tracer was completed, command-by-commandstep-by-step.

To view this post, and discover the answers to this activity, click on the following link if you have not done so already.


Downloads / Information
You may find the download to this packet tracer, or any other related file, directly below:



Tutorial
This packet tracer required for troubleshooting skills, and such a skillset shall be delivered. Below are the commands used to debug and fix the errors present in the topology. Basically, most errors were from mismatched groups and some port assignment issues. Very rudimentary and easy, though troubleshooting usually isn't so easy.


SWITCH #2 (S2) CONFIGURATION COMMANDS
S2>en
S2#show interface trunk
S2#conf t
S2(config)#int range f0/23-24
S2(config-if-range)#channel-group 3 mode active
S2(config-if-range)#switchport mode trunk
S2(config-if-range)#no sh
S2(config-if-range)#exit
S2(config)#int range f0/23-0/21-22
S2(config)#int range f0/21-22
S2(config-if-range)#channel-group 6 mode active
S2(config-if-range)#switchport mode trunk
S2(config-if-range)#no sh
S2(config-if-range)#exit
S2(config)#int range g0/1-2
S2(config-if-range)#channel-group 2 mode active
S2(config-if-range)#switchport mode trunk
S2(config-if-range)#no sh
S2(config-if-range)#exit


SWITCH #3 (S3) CONFIGURATION COMMANDS
S3>en
S3#conf t
S3(config)#int range g0/1-2
S3(config-if-range)#channel-group 1 mode active
S3(config-if-range)#ex
S3(config)#no int port-channel 1
S3(config)#no interface port-channel 6
S3(config)#no interface port-channel 4
S3(config)#int range g0/1-2
S3(config-if-range)#channel-group 1 mode active
S3(config-if-range)#switchport mode trunk
S3(config-if-range)#exit
S3(config)#int range f0/21-22
S3(config-if-range)#channel-group 6 mode active
S3(config-if-range)#
S3(config-if-range)#switchport mode trunk
S3(config-if-range)#exit
S3(config)#int range f0/23-24
S3(config-if-range)#channel-group 4 mode active
S3(config-if-range)#switchport mode trunk
S3(config-if-range)#no sh
S3(config)#int range f0/21-22
S3(config-if-range)#no sh
S3(config)#int range g0/1-2
S3(config-if-range)#no sh
S3(config-if-range)#ex

SWITCH #4 (S4) CONFIGURATION COMMANDS
S4>en
S4#conf t
S4(config)#int range f0/23-24
S4(config-if-range)#ex
S4(config)#int range f0/21-22
S4(config-if-range)#no channel-group 4
S4(config-if-range)#channel-group 5 mode active
S4(config-if-range)#switchport mode trunk
S4(config-if-range)#no sh
S4(config-if-range)#exit
